Weight Class: 2 - 3 Tons

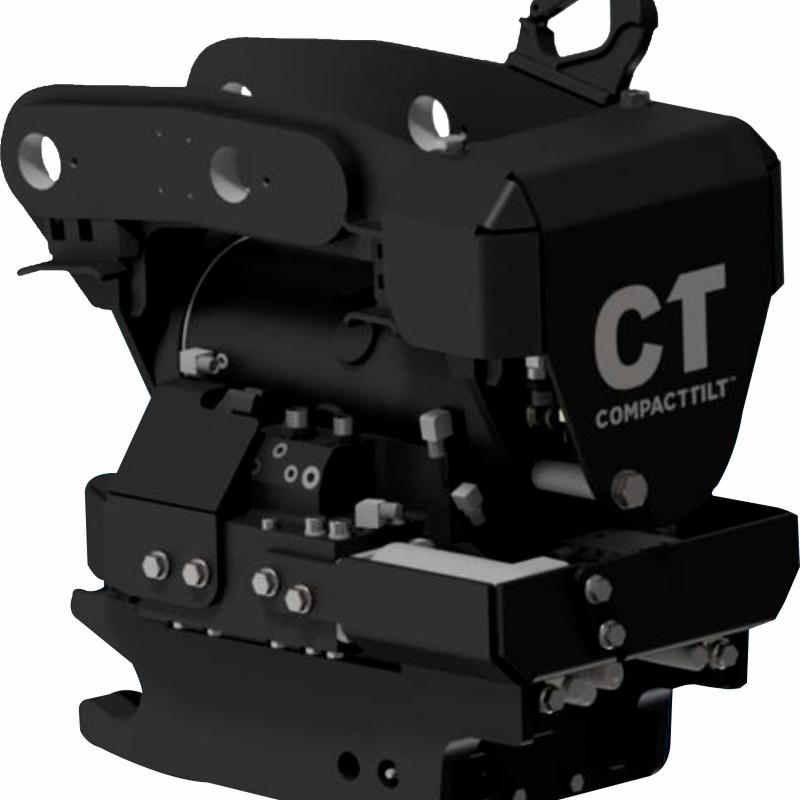

Compacttilt™ CTR3-3 is a tiltrotator designed for excavators in the weight class 2 to 3 tons. It is an updated version of the CTR3, and offers a new design, CT-Lock™*, the option of CT-Oil™* and the option of installing our large control system: HS2.
With a stamp-free design, the CTR3-3 measures only 280 mm in width – At the same time, the CTR3-3 also excels at:
A full 2×50 degrees of tilt – for maximum flexibility in the digging arm.
No stamps – nothing gets in the way on the sides of the digging arm.
Unique low weight of 102 kg incl. coupler and valve block.
*CT-Lock – Extra locking safety for the bucket.
*CT-Oil – Save time on installing hydraulic equipment.
Option for HS2 – Achieve optimal control of the tiltrotator.
Compacttilt™ CTR3-3 is suitable for work with planning, slopes, construction, narrow and challenging space conditions. The Compacttilt™ CTR3-3 also excels in being able to minimize the need for digging boxes during construction tasks. Compacttilt™ CTR3-3 is included as standard. 1 piece. double-acting outlet. The mount is produced for the specific machine and is available with S-Shift.
This product is added by:
COMPACTTILT
Compacttilt is a high-quality tilt and tiltrotator manufactorer - designing for excavators in the weight class 0-10 tonnes. All Compacttilt products have a unique low weight, a compact design, a tilt degree of 2x50° and infinite rotation. Compacttilt both offers tilts and tiltrotators.
One of the unique advantages of the Compacttilt is its patented motor that makes it possible to produce cylinder-free tilts and tiltrotators. This makes the Compacttilt ideal for working in narrow trenches.
Compacttilt is narrow in size and low in weight, which makes the product easy to handle and maneuver
